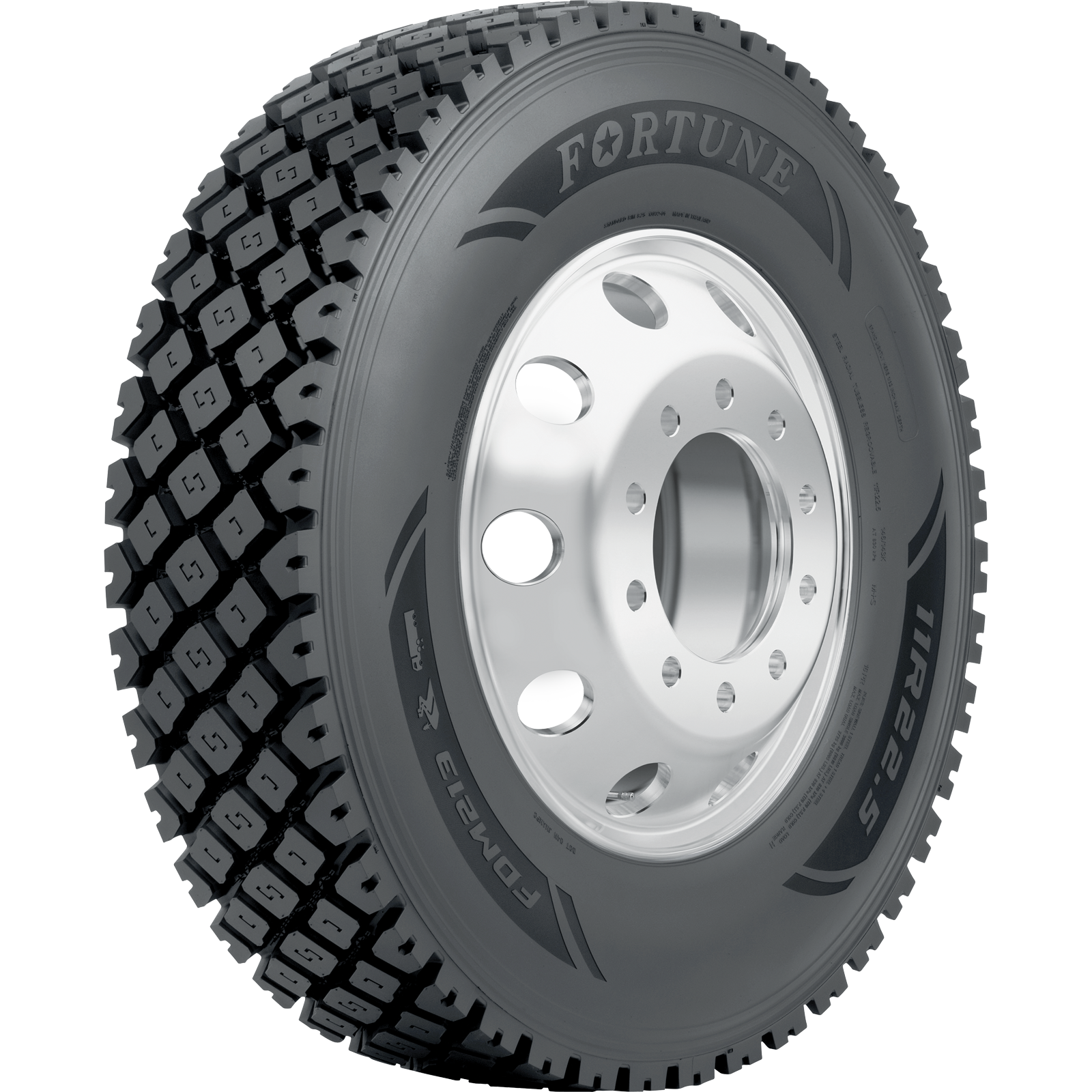

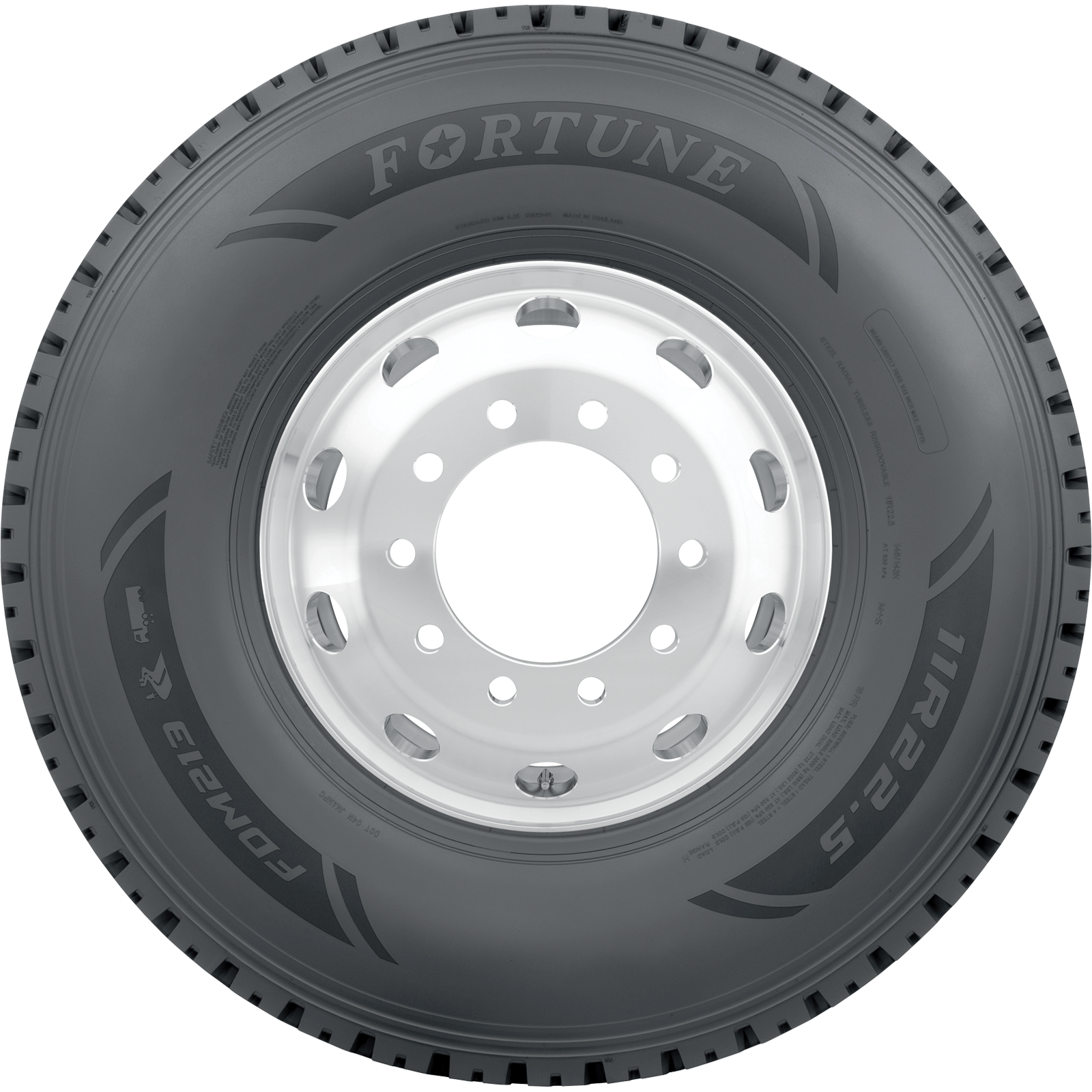

FDM213 Features

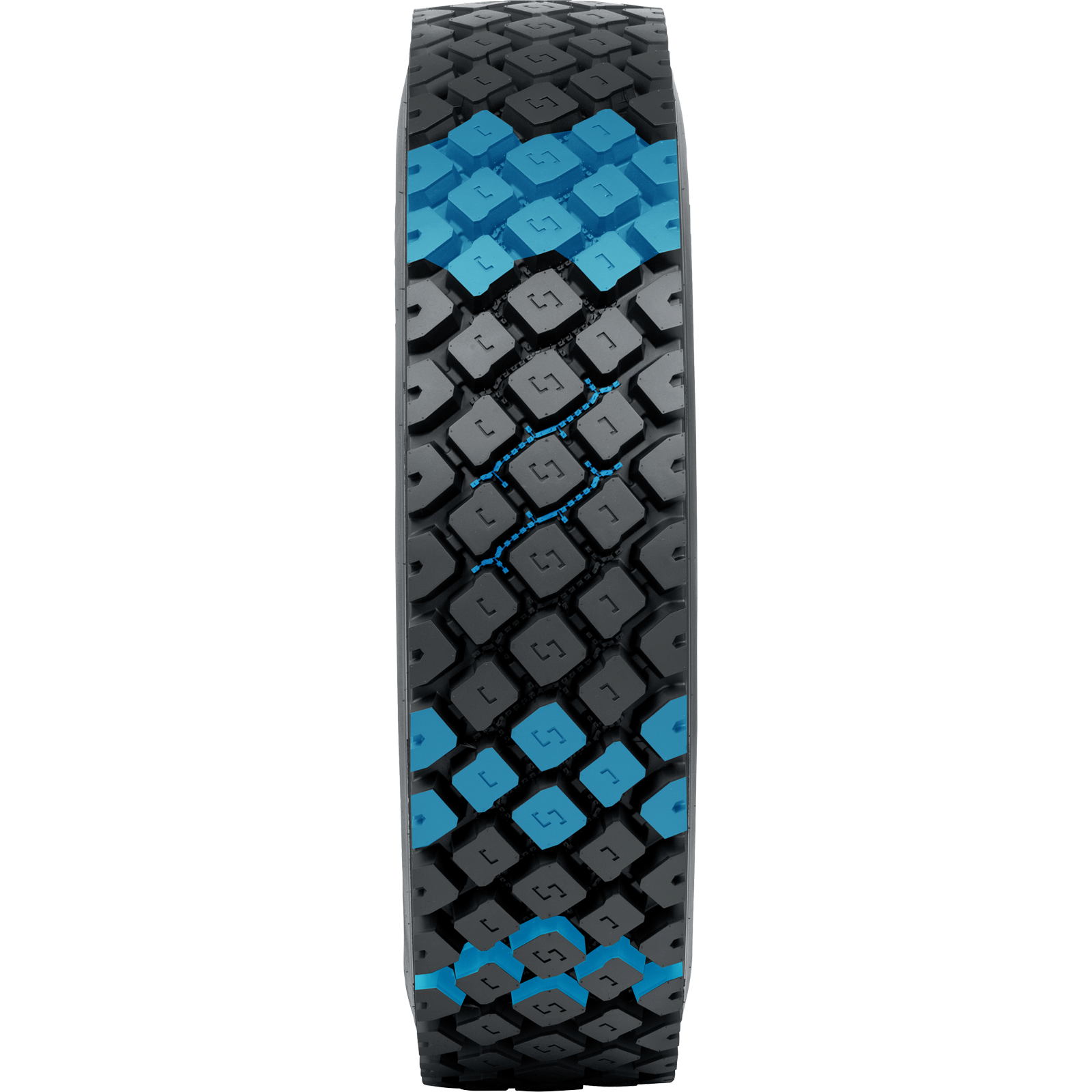

Large pattern block design dominates mixed surfaces. Whether it’s mud, gravel, or snow, expect unparalleled control and stability
Self-Cleaning Design: Featuring an open shoulder design with pattern grooves, the FDM213 sheds debris, mud, and snow
Protective ribs in groove bottom act as a barrier to reduce the risk of punctures and protect the casing
Additional Features
- Deep groove depth with optimized width ratio maximizes wear resistance by distributing the load more evenly across the tire’s surface
Tire Size
|
Ply Rating
|
Load Range
|
LI/SR Single/Dual
|
Tread Depth 32nd
|
Max Load Single lbs
|
Max Pressure Single psi
|
Max Load Dual lbs
|
Max Pressure Dual lbs
|
Approved Rim Width
|
O.D. in
|
S.W. in
|
Revs/Mile
|
Weight lbs
|
Tread Construction
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
11R22.5 | 16PR | H | 146/143K | 32 | 6610 | 120 | 6005 | 120 | 7.50,8.25 | 41.5 | 11.0 | 493 | 136 | 1S + 4S |
11R24.5 | 16PR | H | 149/146K | 32 | 7160 | 120 | 6610 | 120 | 7.50,8.25 | 43.5 | 11.0 | 470 | 145 | 1S + 4S |
All specifications subject to change.
