FDR601ET Features

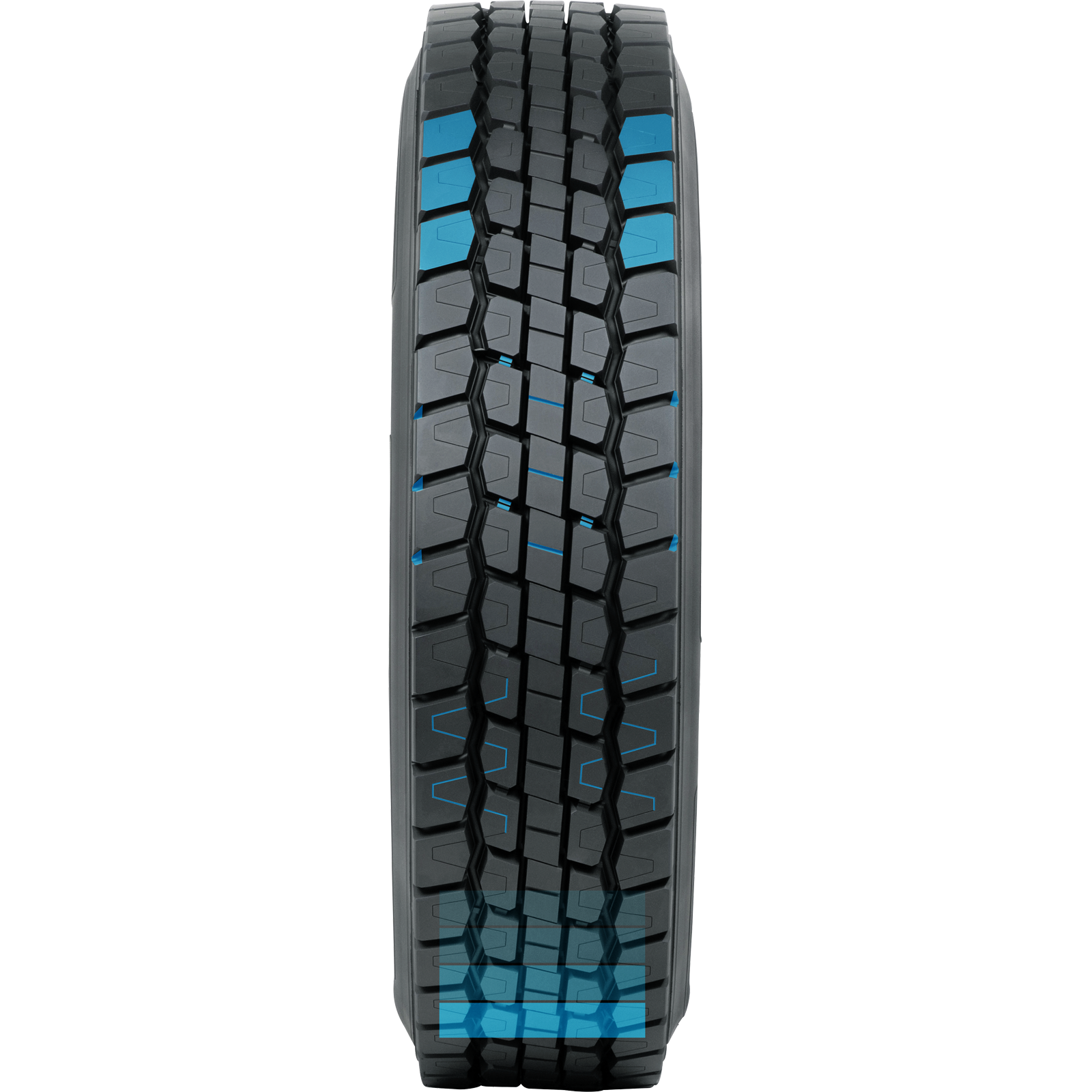

Tie-bar linked tread blocks prevent irregular wear
Unique siping helps maintain block rigidity
Optimal grip and footprint with enhanced belt design
Additional Features
- 4-belt construction for casing durability and retreading
- Open-shoulder design provides extra traction
- EPA SmartWay® verified
|
Tire Size
|
Ply Rating
|
Load Range
|
LI/SR Single/Dual
|
Tread Depth 32nd
|
Max Load Single lbs
|
Max Pressure Single psi
|
Max Load Dual lbs
|
Max Pressure Dual lbs
|
Approved Rim Width
|
O.D. in
|
S.W. in
|
Revs/Mile
|
Weight lbs
|
Tread Construction
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14PR | G | 144/142L | 26 | 6175 | 105 | 5840 | 105 | 7.50,8.25 | 41.5 | 11.0 | 495 | 118 | 1S + 4S |
| 11R22.5 | 16PR | H | 146/143L | 26 | 6610 | 120 | 6005 | 120 | 7.50,8.25 | 41.5 | 11.0 | 495 | 118 | 1S + 4S |
| 11R24.5 | 14PR | G | 146/143L | 26 | 6610 | 105 | 6005 | 105 | 7.50,8.25 | 43.5 | 11.0 | 475 | 130 | 1S + 4S |
| 11R24.5 | 16PR | H | 149/146L | 26 | 7160 | 120 | 6610 | 120 | 7.50,8.25 | 43.5 | 11.0 | 475 | 130 | 1S + 4S |
| 225/70R19.5^ | 14PR | G | 128/126N | 19 | 3970 | 110 | 3750 | 110 | 6.00,6.75 | 31.9 | 8.9 | 645 | 65 | 1S + 3S |
| 245/70R19.5 | 14PR | G | 133/131N | 19 | 4540 | 110 | 4300 | 110 | 6.75,7.50 | 33.0 | 9.8 | 624 | 72 | 1S + 4S |
| 295/75R22.5 | 14PR | G | 144/141L | 26 | 6175 | 110 | 5675 | 110 | 8.25,9.00 | 39.9 | 11.7 | 510 | 115 | 1S + 4S |
| 295/75R22.5 | 16PR | H | 146/143L | 26 | 6610 | 120 | 6005 | 120 | 8.25,9.00 | 39.9 | 11.7 | 510 | 115 | 1S + 4S |
| 285/75R24.5 | 14PR | G | 144/141L | 26 | 6175 | 110 | 5675 | 110 | 7.50,8.25,9.00 | 41.3 | 11.1 | 498 | 119 | 1S + 4S |
| 285/75R24.5 | 16PR | H | 147/144L | 26 | 6780 | 120 | 6175 | 120 | 7.50,8.25,9.00 | 41.3 | 11.1 | 498 | 119 | 1S + 4S |
^3-belt construction All specifications subject to change.
